Fully Encapsulated Panel

The fully encapsulated panel designed and engineered by QUATTRO PAVIMENTE TEHNICE is the ultimate solution for access floor systems, highly resistent to mecanical stress in all office spaces, technical rooms and data centers. This system allows performing the primary works – partitions, ceilings, lightings etc. – on the access floor, as well as later on modifications and fit-out.

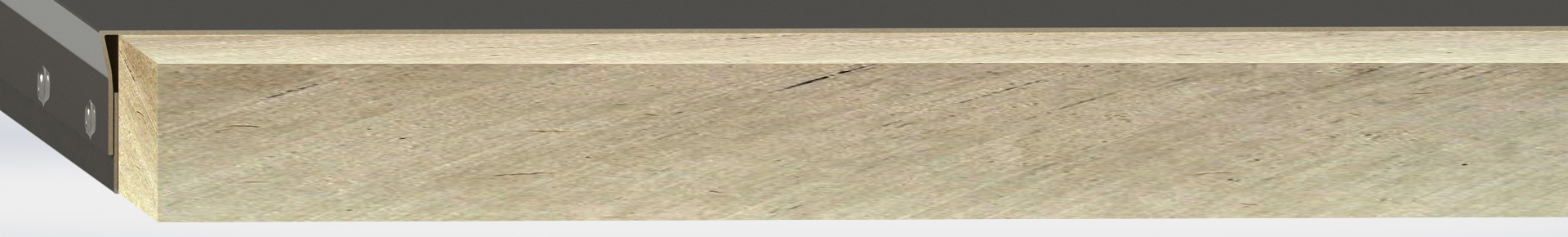

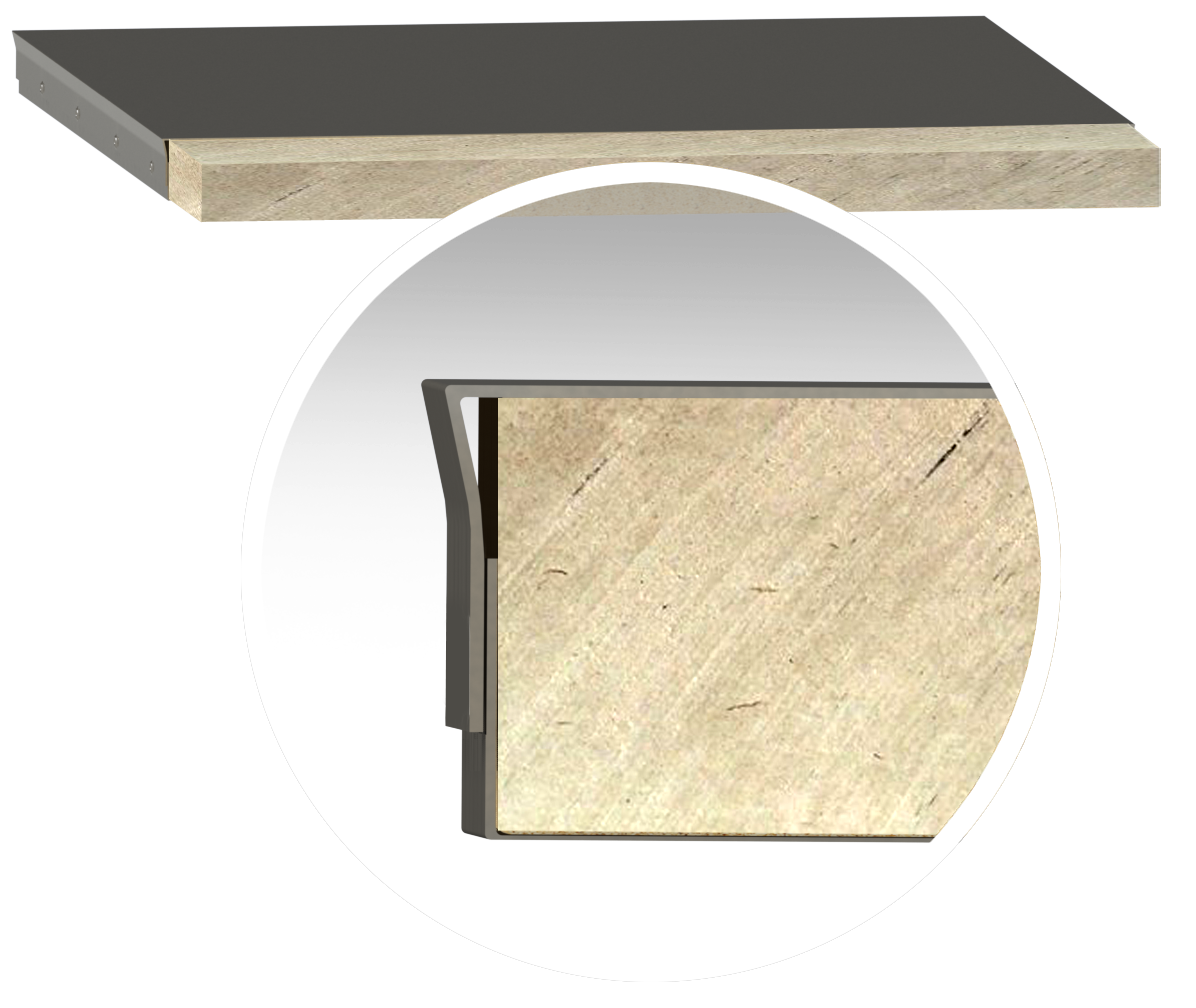

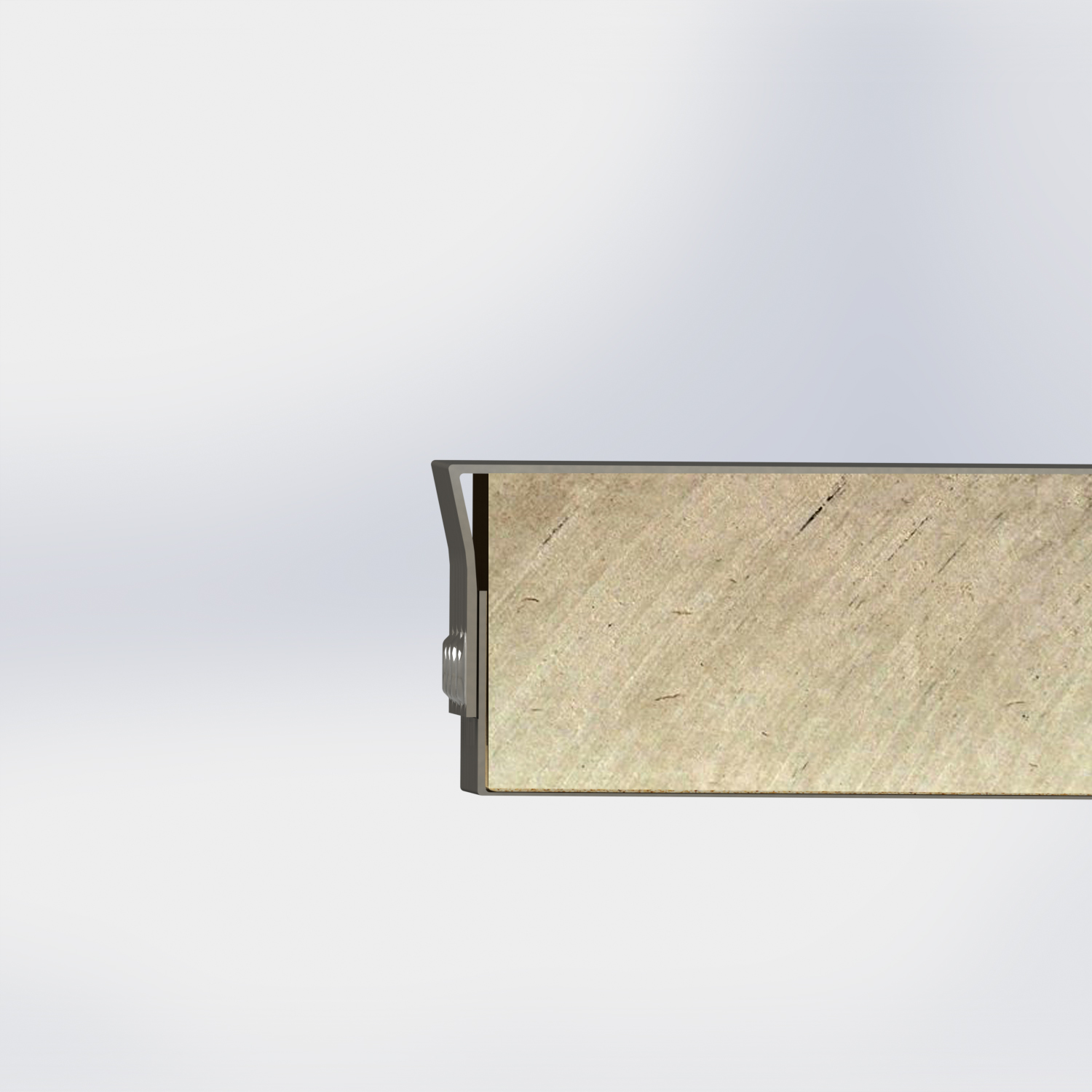

Encapsulated panel core could be:

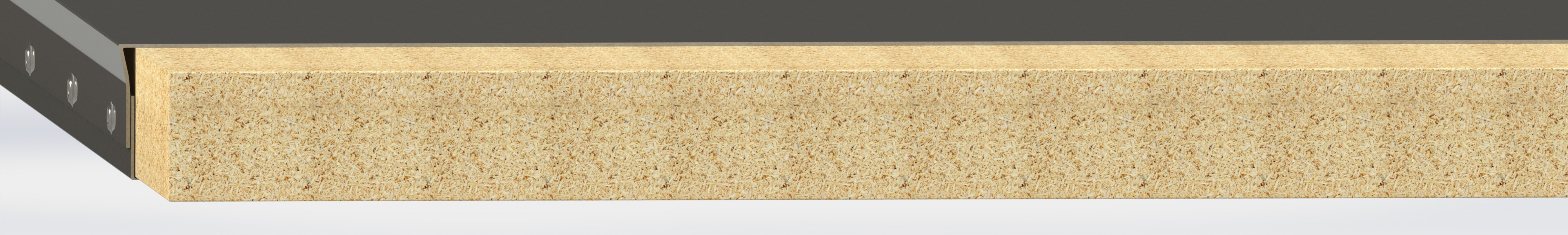

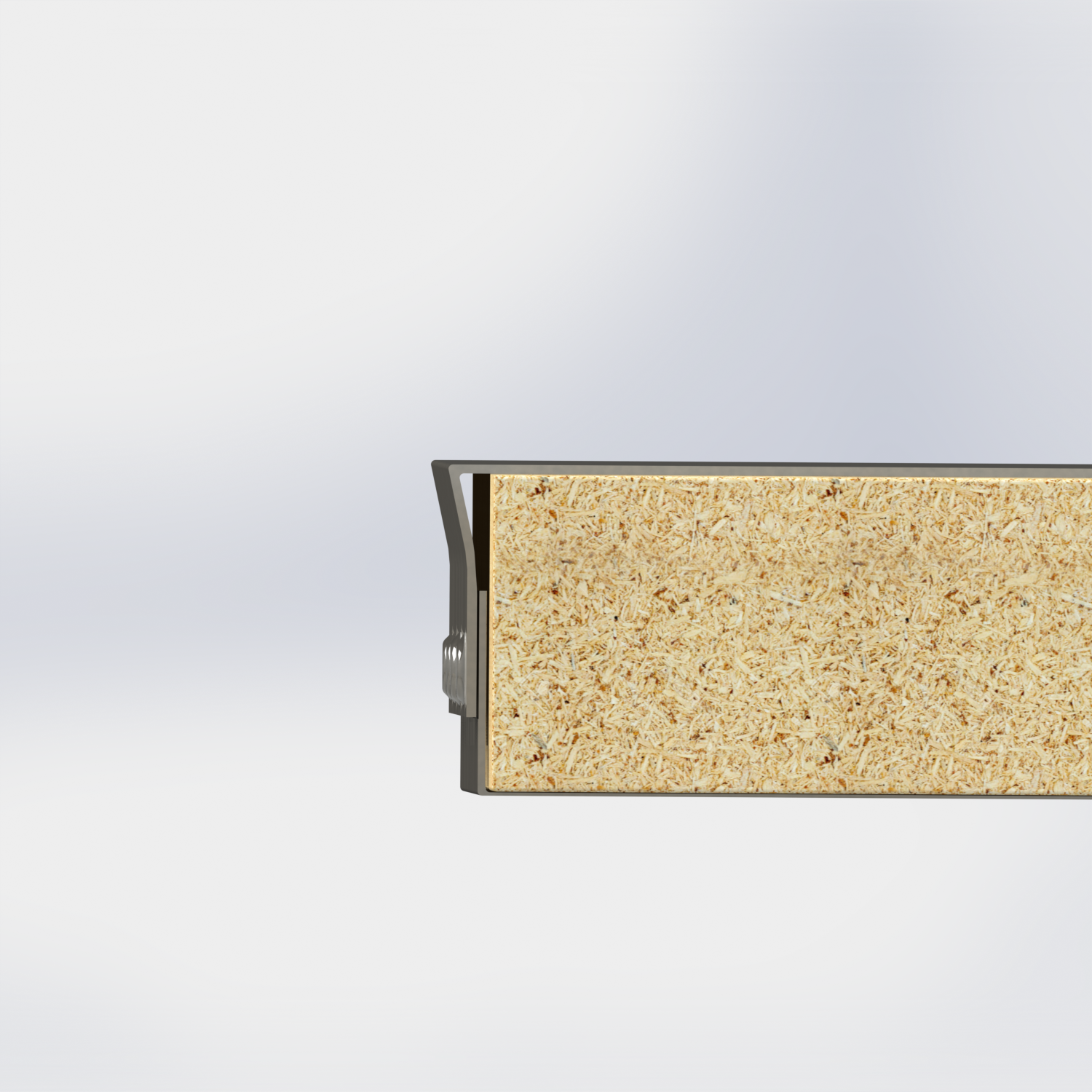

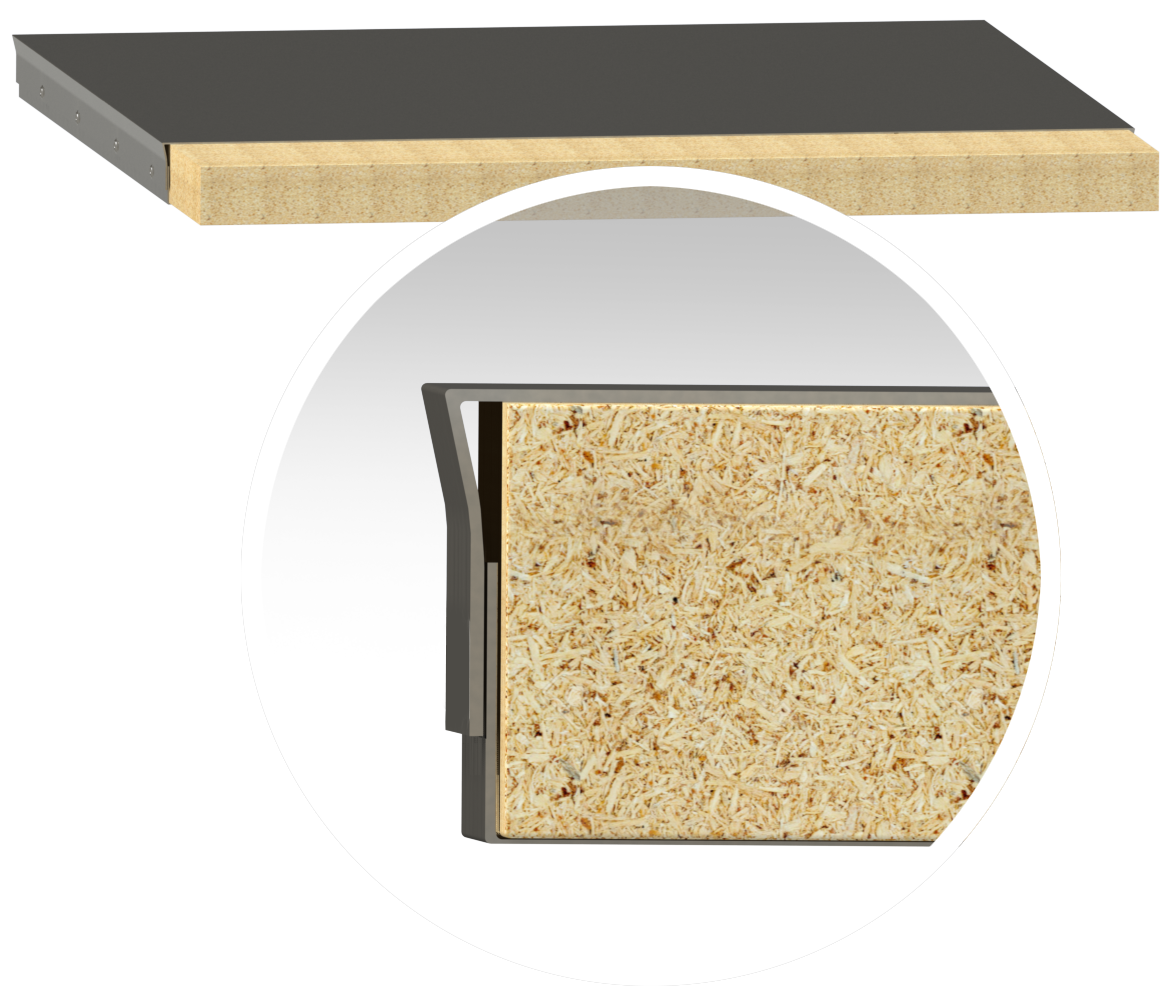

  • STW: high density chipboard with thickness 23mm or 29mm;
  • STS:  calcium sulphate reinforced with thickness 23mm or 29mm (for heavy loads).

DIMENSIONAL DATA Fully Encapsulated Panel:
Panel dimensions 600x600x23mm  or  600x600x29mm
Bottom finishing zinc coated steel sheet 0.4mm
Side finishing zinc coated steel sheet 0.4mm
Top finishing zinc coated steel sheet 0.4mm

TEHNICAL DATA Fully Encapsulated Panel:
PRODUCT   Breaking load     Load class     Fire reaction
 Panou STW 23   > 4kN CLASS 1 Bfl S1 D0
Panou STW 29 > 6kN CLASS 2 Bfl S1 D0
Panou STS 23 > 4kN CLASS 1 A2fl S1 D0
Panou STS 29 test in progress test in progress A2fl S1 D0

SPECIFIC FEATURES Fully Encapsulated Panel:
  •  Higher resistances to mechanical wear and tear;
  •  Higher resistance to humidity;
  •  Electric conductive by design;
  •  Higher load capabilities on thinner panel.

Image gallery

Panouri
Online contact
Here you have a section dedicated to fast communication: please fill the fields and send the message. The our Support Team receives, analyzes and configures an answer to your request.

Panels

Panouri

Top finish

Finisaje

Structure

Structura

Accessories

Accesorii
  • QUATTRO ACCESS FLOORS ADVANTAGES:
  • A must for certification on class A for office space buildings;
  • Fast installation with easy to reorganise cables with low costs;
  • 100% easy access to cables after installation without costs;
  • Efficiency during use and low cost maintenance;
  • Efficiency during use and low cost maintenance;
