Fire Resistant Panel

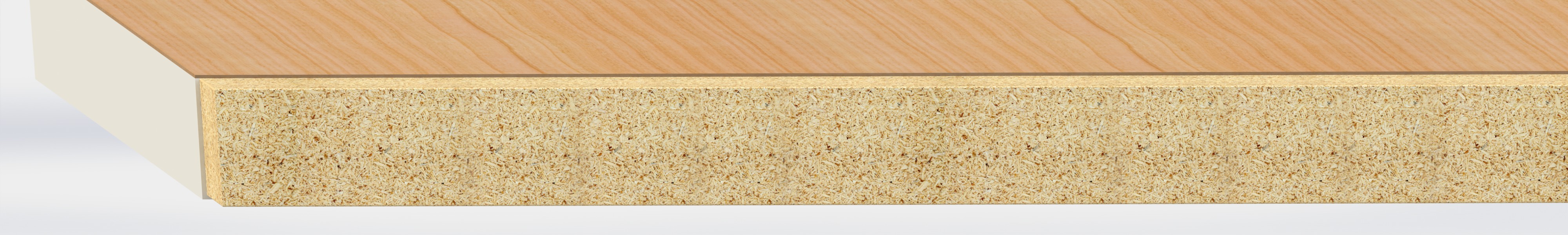

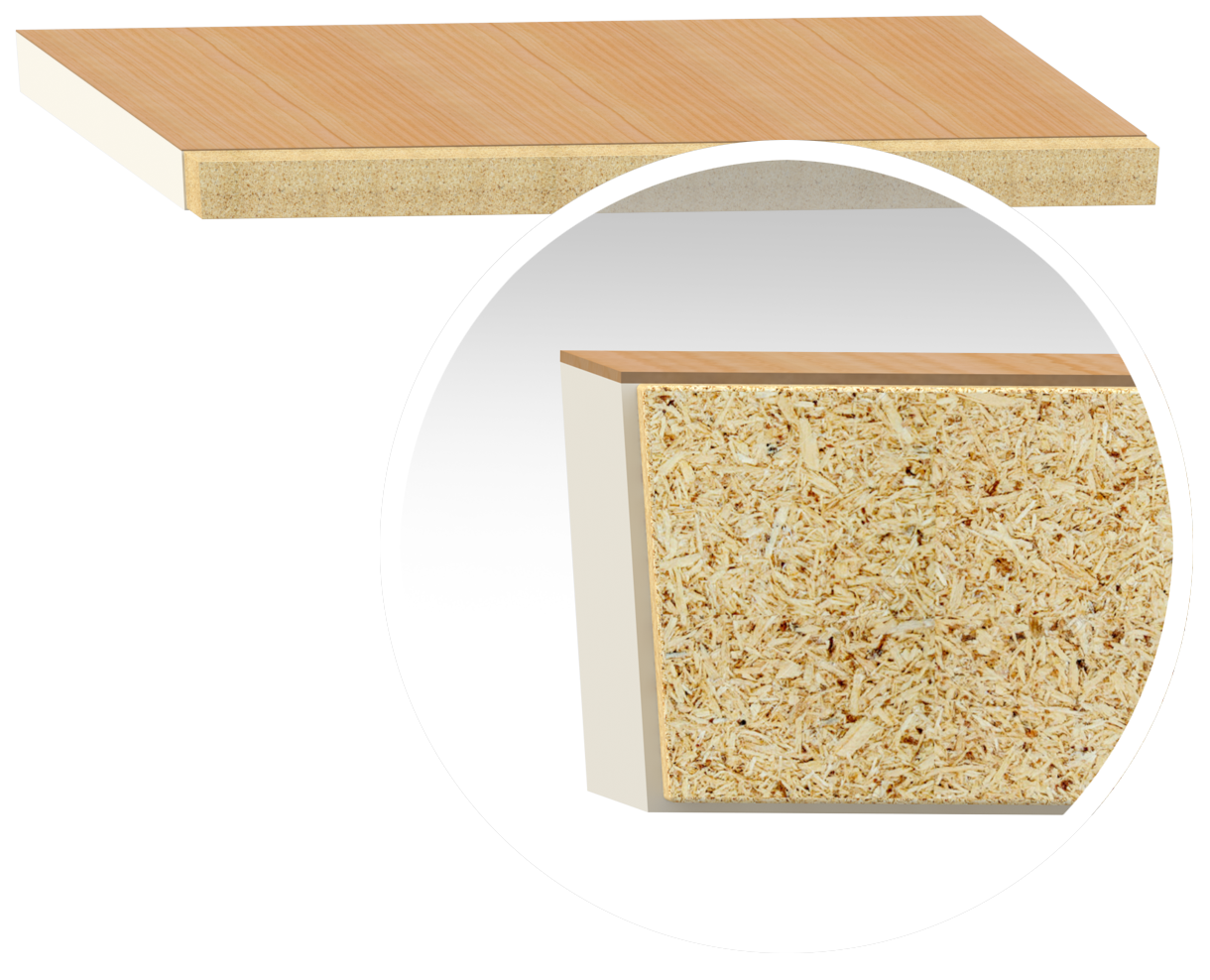

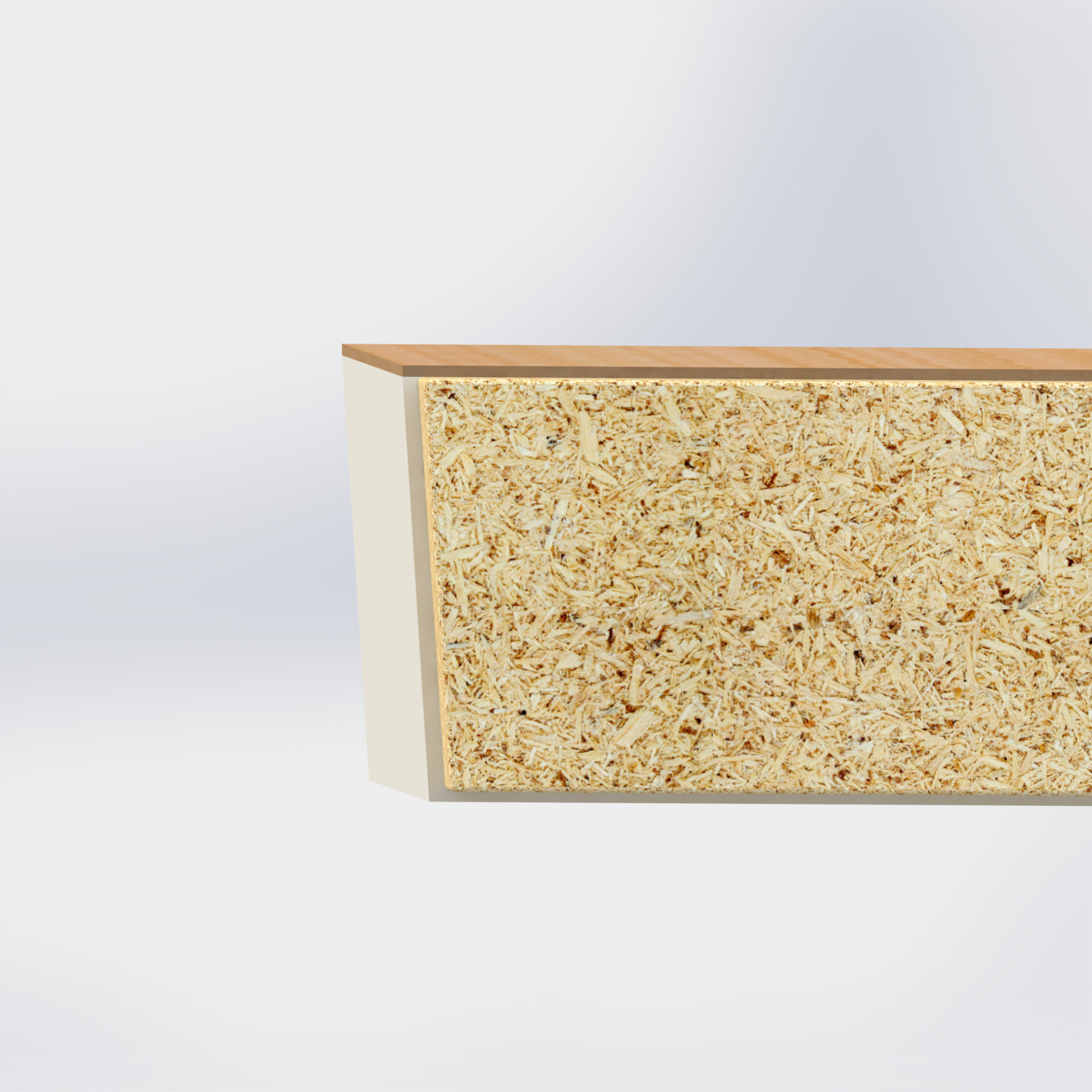

The innovative fire resistant QUATTRO W40 RF60 panel is the ultimate solution for raised access flooring systems in high buildings. QUATTRO’s novelty consists in coating the exposed areas of the chipboard core, with an fire resistant overlay.The exposure of this overlay to temperature of 1.2000Celsius leads to its expansion and prevents contact of the flame with the panel core. The expansion up to 20mm on the sides of the panel creates also a complete fire barrier. In this way, the entire system is developing a solid fire protection barrier able to provide safe evacuation of the personnel.
DIMENSIONAL DATA fire resistant panel W40 RF60:
| Panel size: | 600X600X38mm |
| Bottom finishing: | Fire protection overlay RF60 |
| Side finishing: | Fire protection overlay RF60 |
| Top finishing: |
HPL, Ceramics, PVC, Linoleum, Natural Stone, Aluminium sheet, Rubber sheet,
Nude – for later installation of finishing, etc. |
TECHNICAL DATA fire resistant panel W40 RF60:
| Core panel: | Wood chipboard (STW) |
| Density: | ~700 kg/m 3 high density chipboard |
| Panel weight: | ~9.6 kg/panel (~27kg/sqm) |
| Breaking load: |
6.4 KN (system S without stringers)
8 KN (system S with stringers)
|
| Fire reaction: | A2flS1D0 (SR EN 13501-1) |
| Fire resistance: | REI 30 min (SR EN 13501-2) |
SPECIFIC FEATURES fire resistant panel W40 RF60:
- As per results of tests performed in certified laboratory according to European Norms, the panel maintains its mechanical properties with fire exposed.
- In the case of fire and intense head, the temperature on the top side of the panel doesn’t exceed 600Celsius, alowing the safe evacuation of the personnel.
- Best weight/load ratio for fire resistant access floor panel.
