E Structure type

Structure is the carrying element of the system. The type of structure is set depending on the height of the space (empty space under the floor) and especially the load the system must support (potency).
  • "E" structure with adjustable height: 95 ~ 125 mm
• low-height cap, from zinc coated steel, profiled to fasten tubular beams with M5 screws;
• support (base) made from metal sheet zinc coated steel and inner threaded zinc-coated column M16.

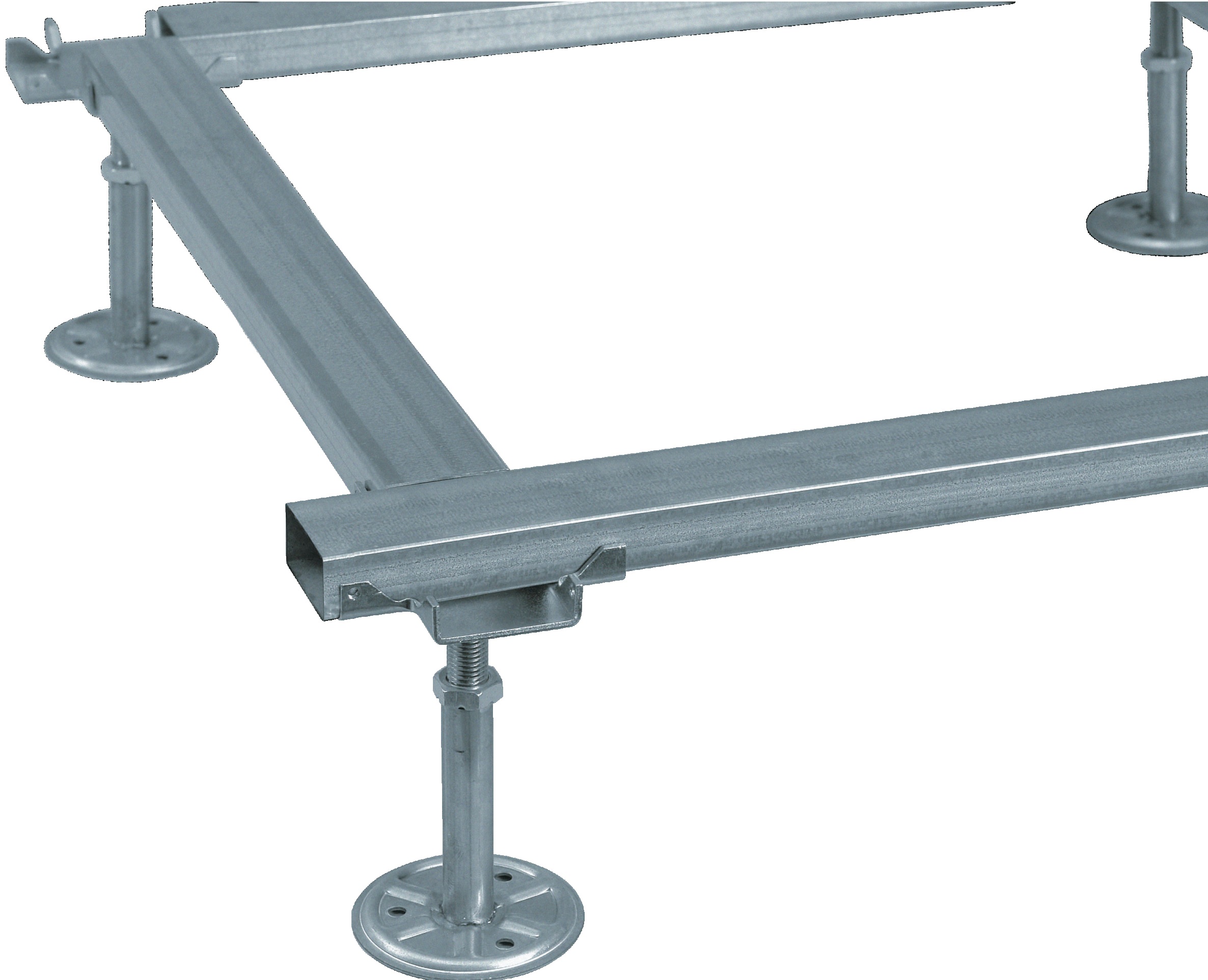

  • "E" structure with height over 125 mm
• average height/high head from deep drawn zinc-coated steel, 3 mm thick, profiled to fasten tubular beams and threaded rod from zinc-coated steel;
• support (base) from deep drawn zinc-coated steel, 2 mm thick and zinc-coated column D20.


"E" STRUCTURE ACCESSORIES
  • “E” structure tubular beams
Tubular beams from zinc-coated steel have a section of 50x25mm and with lengths: 550mm and 1800mm.
  • "E" structure beam fittings
The fittings ensure vibration dampening and are available in antistatic PE or bituminized feltpaper autoadhesive strips.
