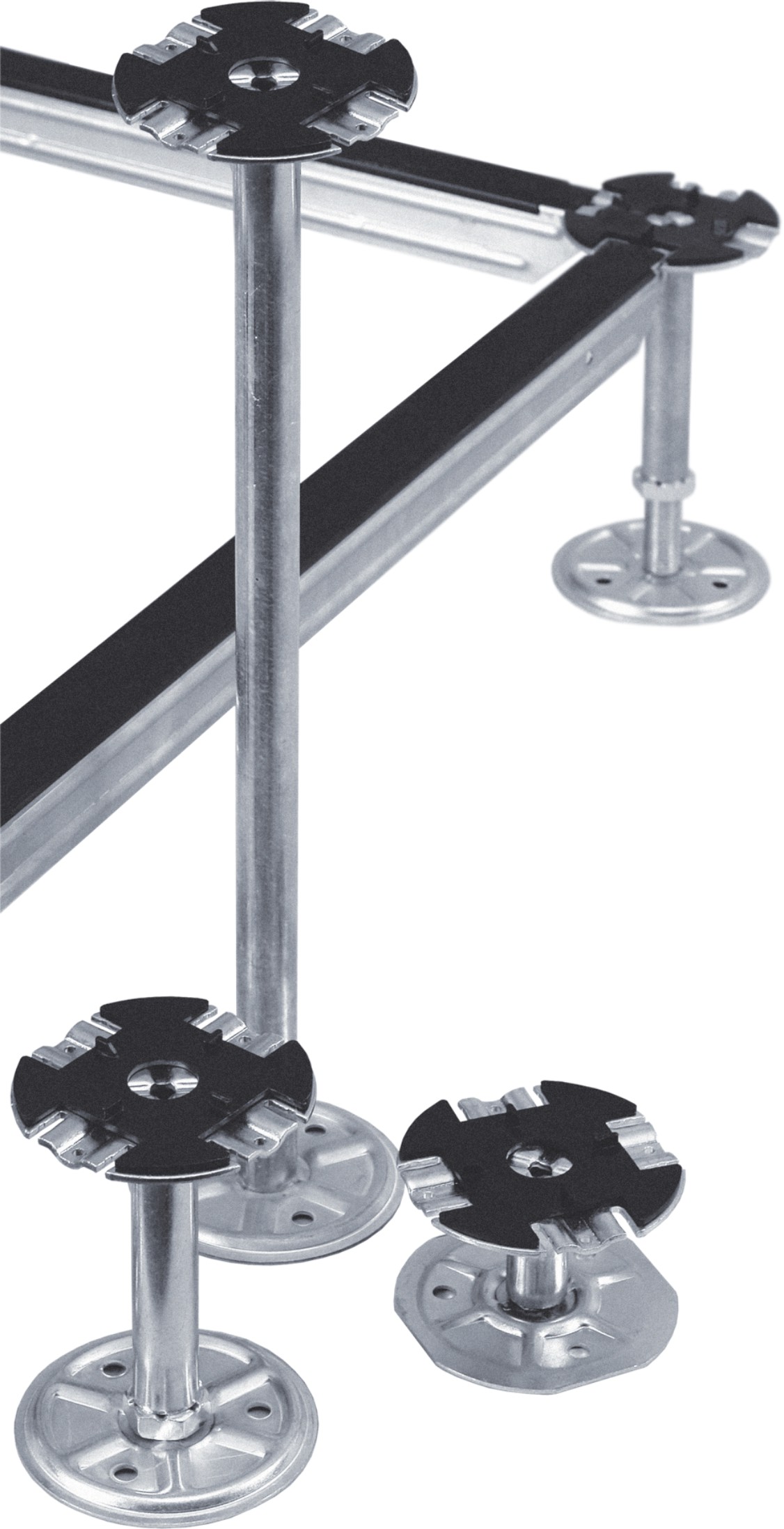

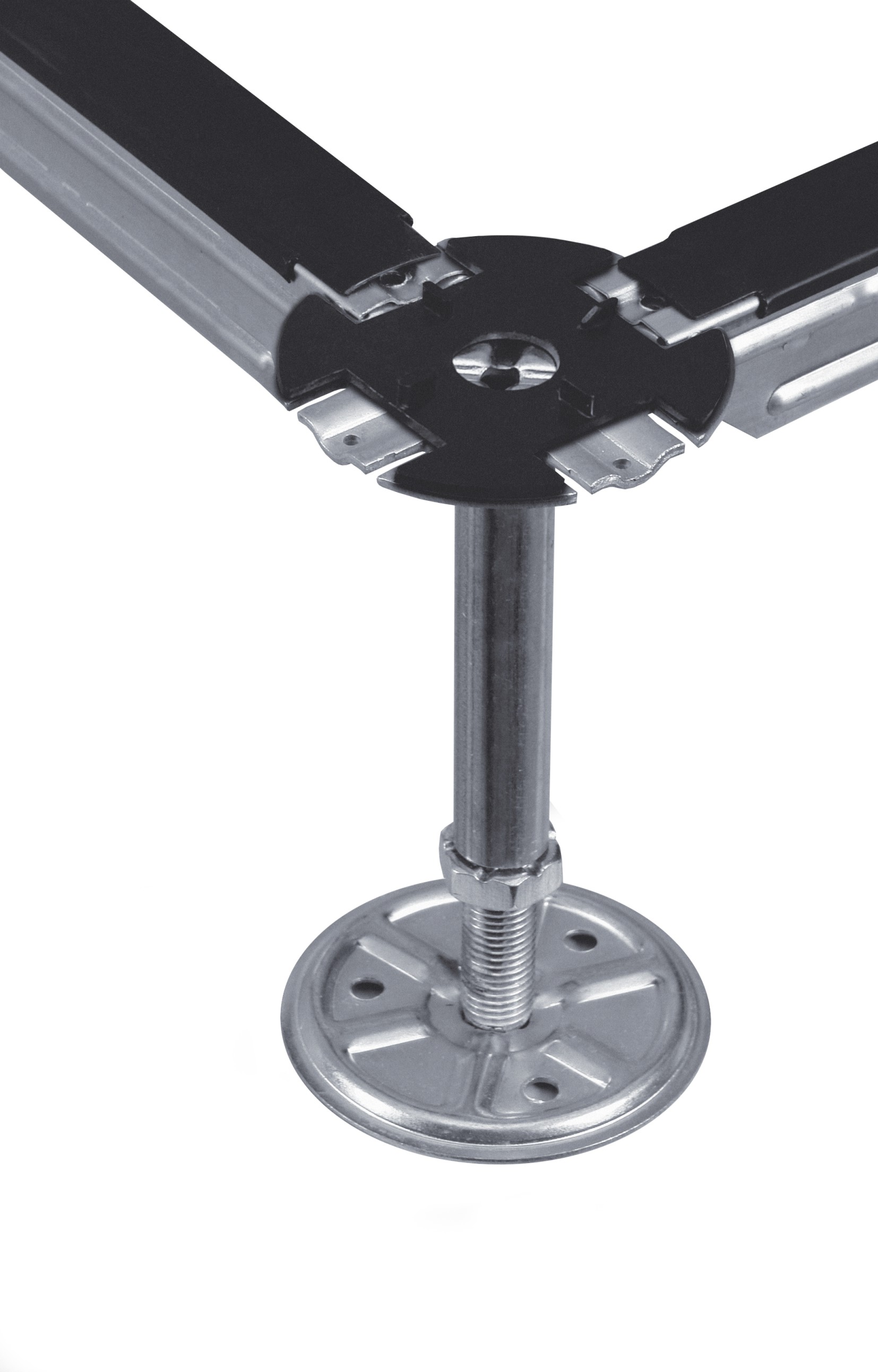

S Structure type

Structure is the carrying element of the system. The type of structure is chosen depending on the height of the floor (empty space under the floor) and the load the system must support (potency).
  • "S" structure with adjustable height: 30 ~ 90 mm
• base BSK made of 90mm disc in 2mm galvanized steel and welded M16 threaded bar;
• head TF made of 90mm profilate disc galvanized steel and welded 20mm interior threaded M16 tube.
  • "S" structure with adjustable height: 90 ~ 300 mm
• base BS made of 90mm disc in 2mm galvanized steel and welded M16 threaded bar with nut-stop;
• head TS made of 90mm profilate disc galvanized steel and welded 20mm interior M16 tube with nut-stop.

  • "S" structure with adjustable height: 300 ~ 1050 mm
• base BT made of 90mm disc galvanized steel and welded 20mm interior threaded M16 tube with nut-stop;
• head TT made of 90mm profilate disc galvanized steel and welded M16 threaded bar with nut-stop.


"S" STRUCTURE ACCESSORIES
  • Gasket for "S" structure pedestal
Mounted on the upper side of the column, with the role of fastening the plate and dampening vibrations. Available in variants antistatic PE, conductive.
  • "S" structure stringers
•  TLB: open profile 600 x 28 x 18 mm (length  x width x height );
•  TSB: open profile 600 x 28 x 38 mm (length  x width x height );
•  TP: closed profile 600 x 25 x 50 mm (length  x width x height );.
  • "S" structure beam fittings
Fittings have the role of dampening vibrations. Available from antistatic PE.
