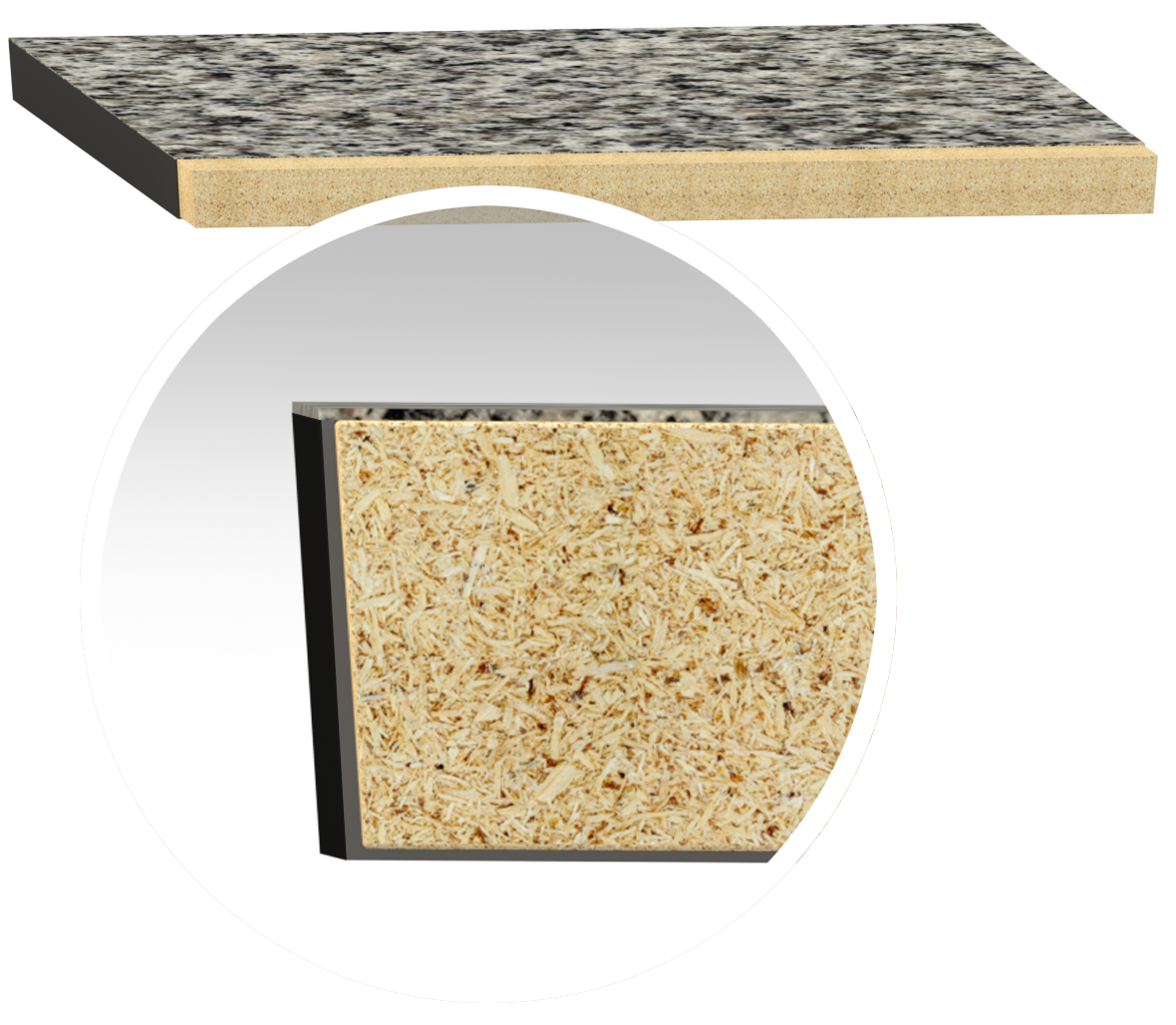

Wood Conglomerate Panel (Wood Chipboard)

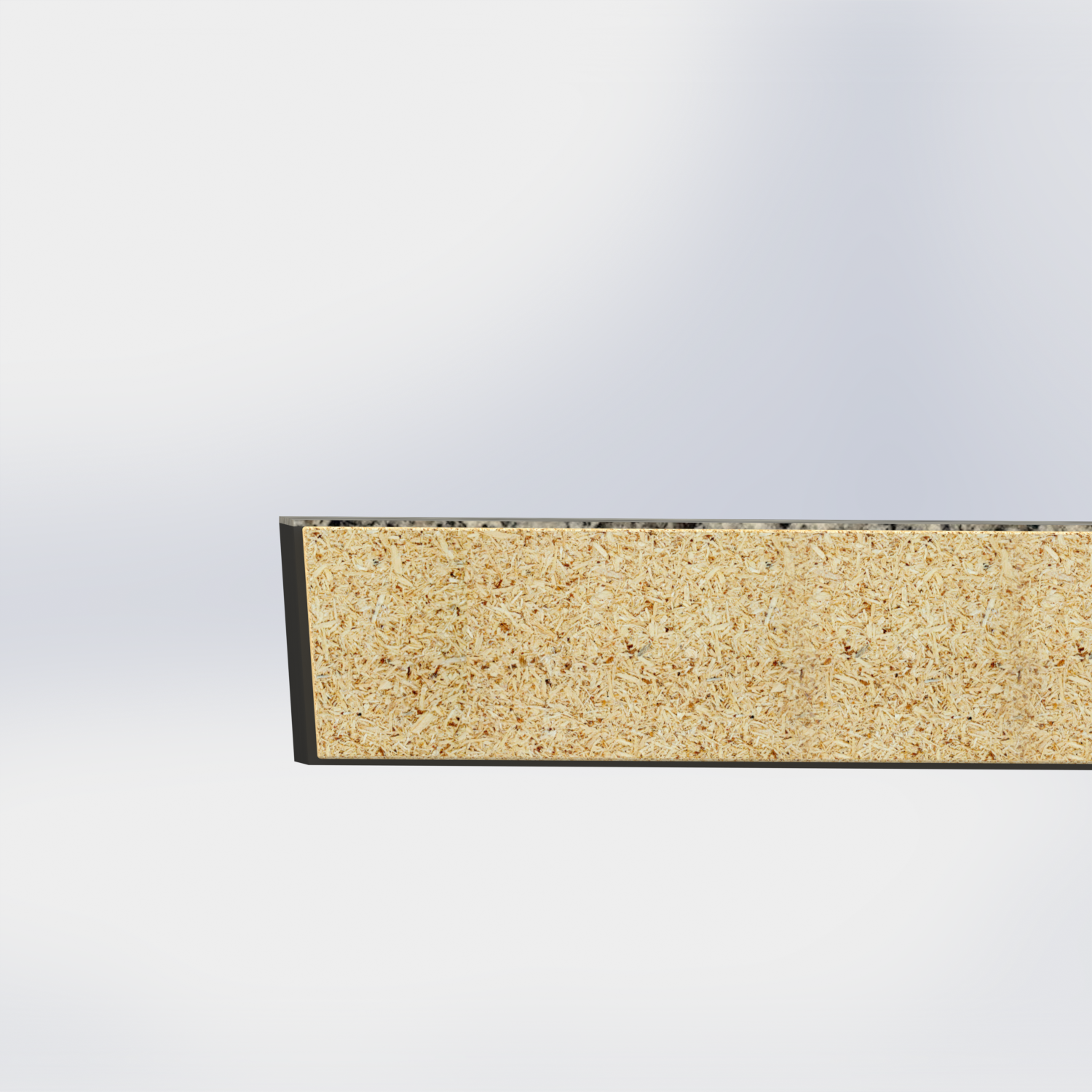

It is a standard panel, made of wood conglomerate and thermopolymerized resins, dimensions 600X600mm, specific weight of 700kg/sqm and available in two thicknesses: 28mm or 38mm.

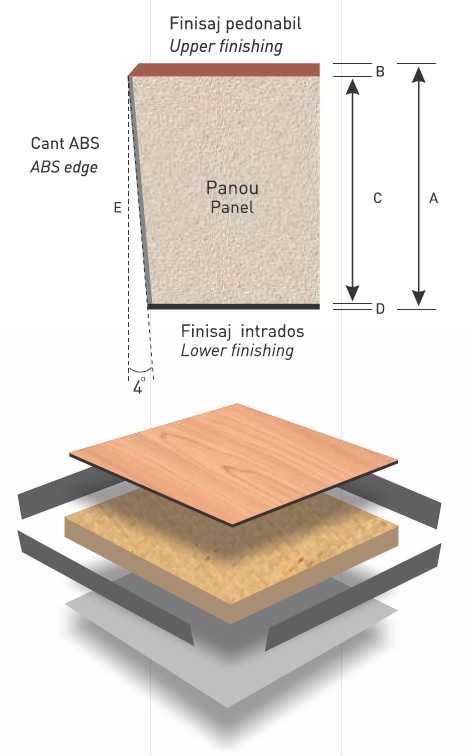

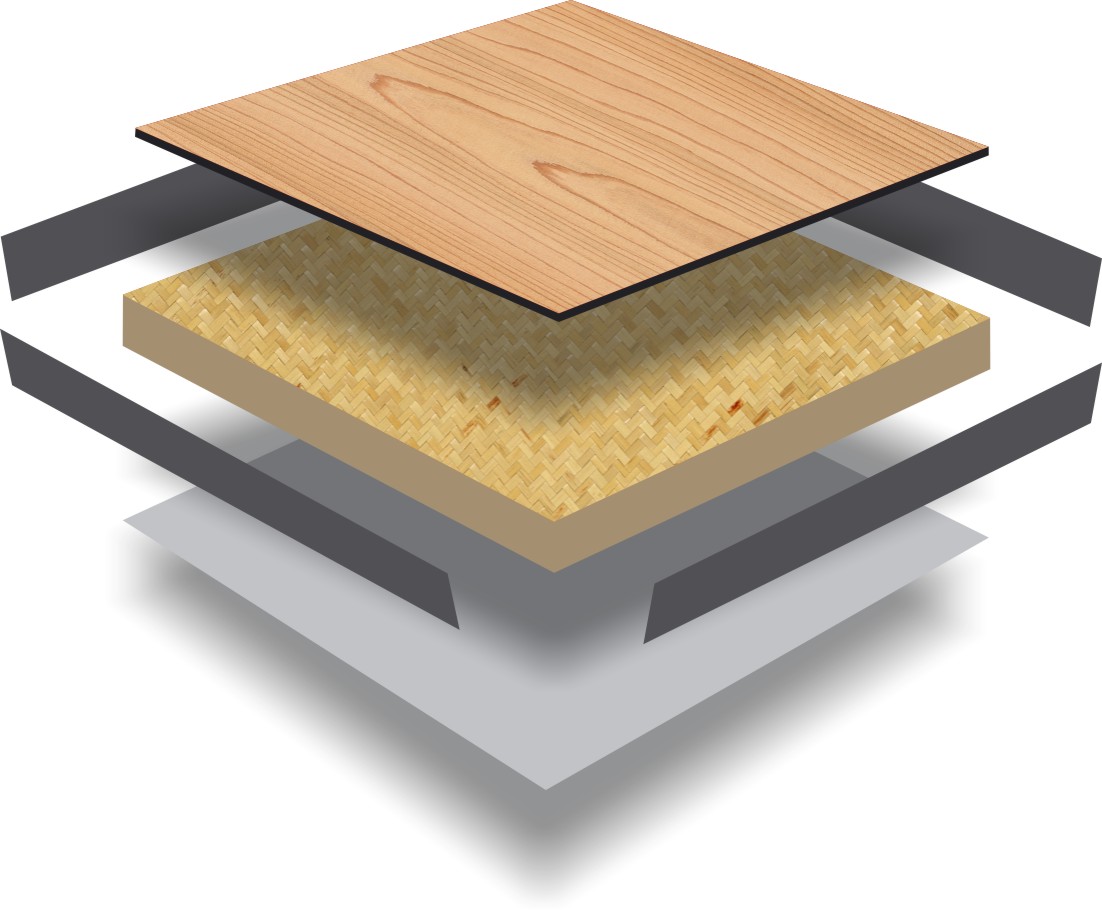

The upper finishing includes aluminium, plastic laminate sheets HPL, PVC, linoleum, rubber, carpet, wood, ceramics or other materials at the customer's request. The lower finishing could be:
- standard: aluminium sheet 0.05mm;
- special: zinc plated steel tank 0.5mm (for heavier loads).

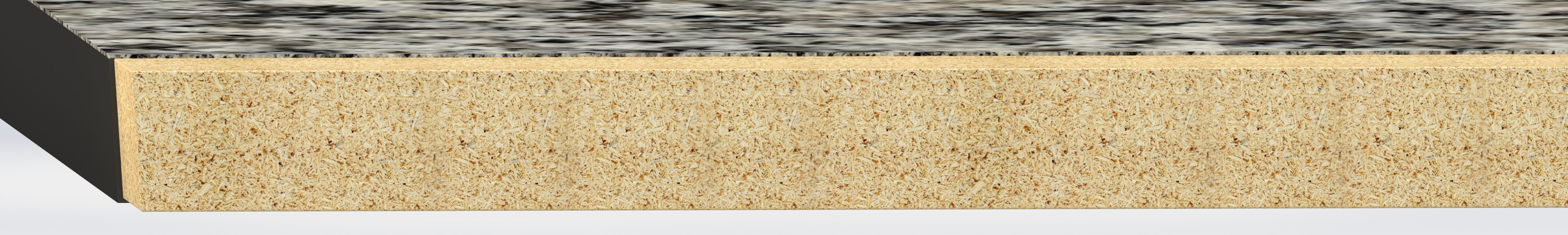

The edge is plated with black or brown ABS 0.45mm thickness.
Specific technical characteristics:- SOUND INSULATION: Minimum depending on the finishing = 32 dB.

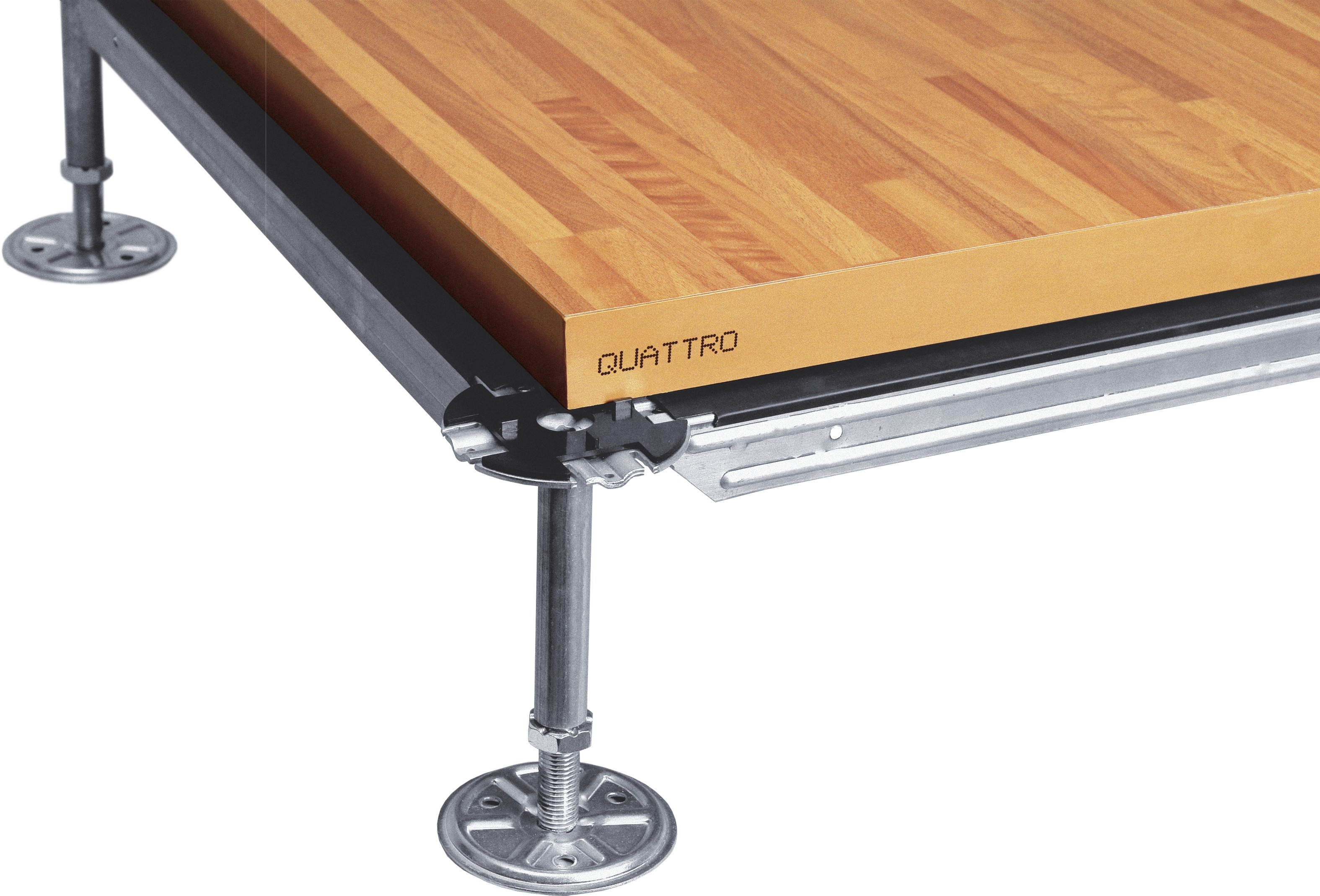

- POINT LOADING PERFORMANCE: Panel W40 and structure type S
| System description | Standard | Performance* |
| Panel W40 on S type pedestals without stringers | EN 12825 | Clasa 2 (>6,4 KN) |
| Panel W40 on S type pedestals with TSB stringers | EN 12825 | Clasa 5 (>10,5 KN) |
| Deflection class** | EN 12825 | Clasa A (<2,5 mm) |
**Deflection = maximum panel deformation when loading applied on center and perimeter edge.
- ELECTRICAL BEHAVIOR:
| Variable depending on the used finishing | EN 1081 | standard ≥ 109ohm optional < 106ohm |
- FIRE BEHAVIOR:
| Fire reaction according to EN 13501 | EN 13501-1 | Clasa | Bfls 1 |
- HUMIDITY BEHAVIOR:
| Size variation after 24 hour immersion in water: | % | 0,6 / 0,8 |
| Volume variation after 24 hour immersion in water: | % | 1,8 / 2,1 |
| Weigh variation after 24 hour immersion in water: | % | 30 / 38 |

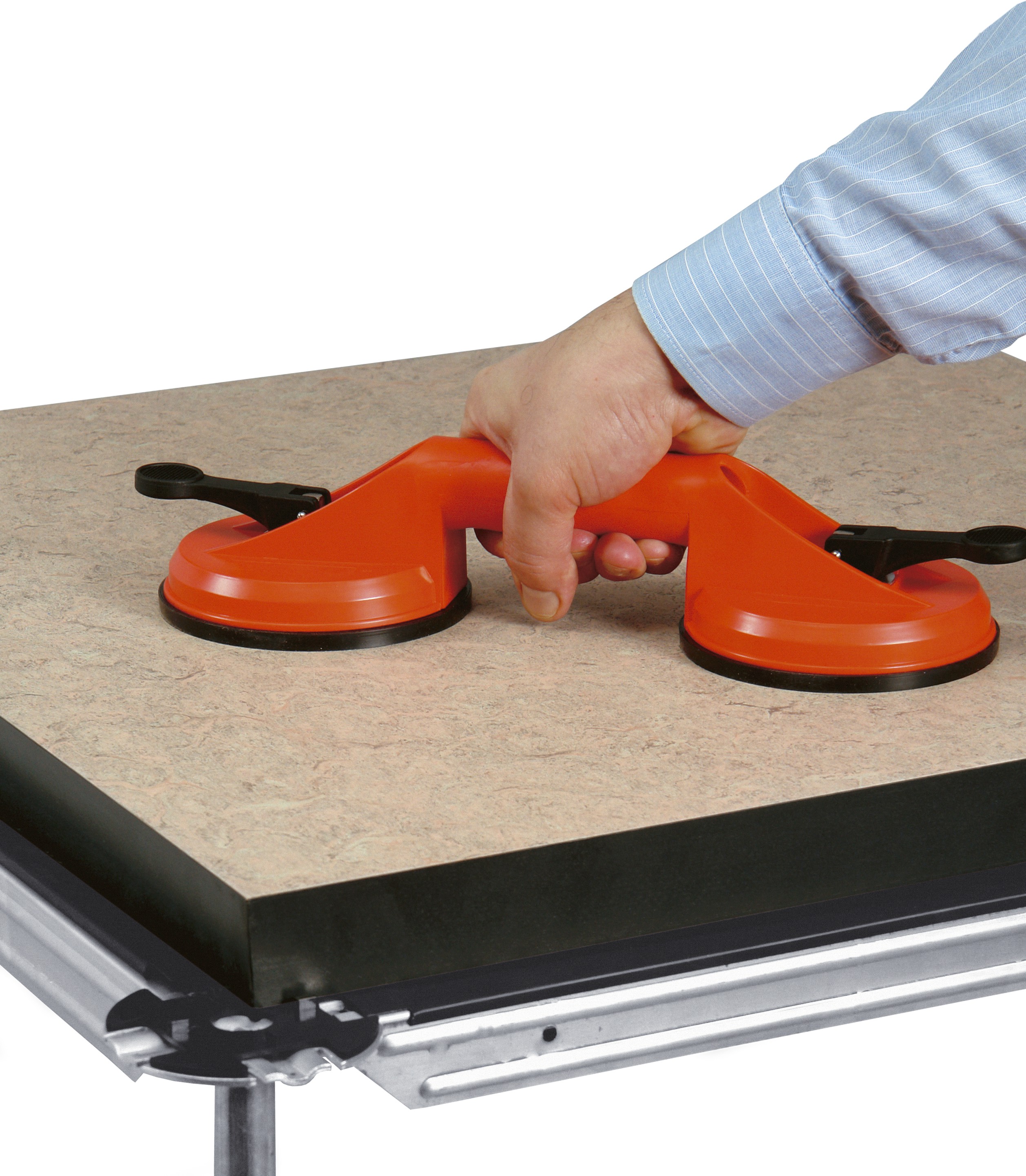

Image gallery
